Koop Hot D4245EVO motor met vaste vleugels gemaakt in China. Flash Hobby is een D4245EVO Fixed Wing Motor fabrikant en leverancier in China.
D4245 EVOToepassing RC borstelloze motor
D4245EVOï¼3515ï¼ RC Outrunner borstelloze motor voor UAV-vliegtuigen Multicopters RC vliegtuig Helikopter Cradle Coffee Machine Milk Tea Machine elektrische boormachine maaimachine robotarm
Hittebestendige koperdraadwikkeling
D4245 EVOSpecificatie RC borstelloze motor

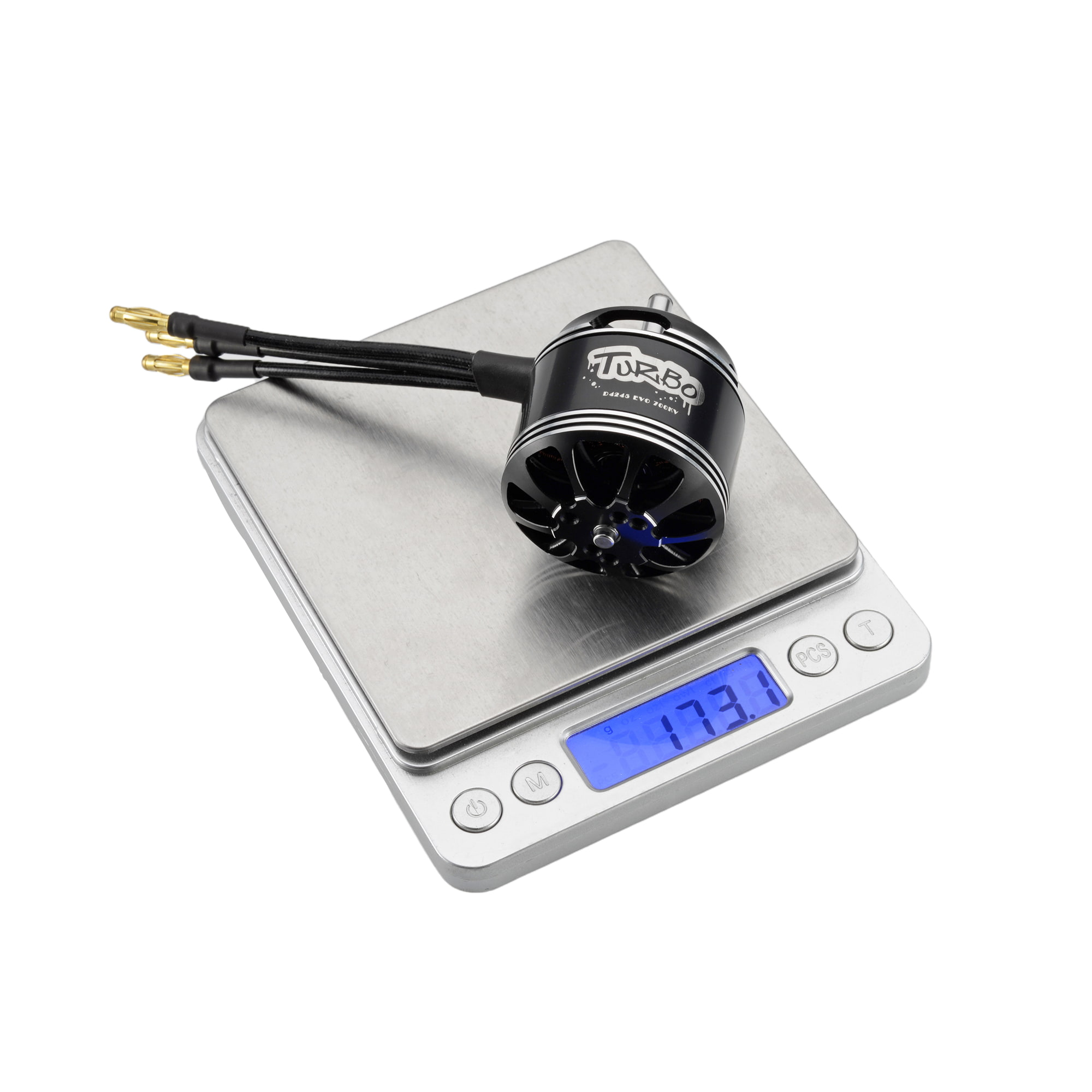

Gewicht: 173,5 g (inclusief kabels)
Motorgrootte: 42,8 x 45 mm
Schachtmaat: 5,0 * 63,0 mm
Statordiameter: 35 mm
Statorhoogte: 15 mm
Motorbevestiging: 25 * 25 mm (M3 * 4)
Configuratie: 12N14P
KV-waarde voor selectie:
KV-waarde: 700KV, 800KV of aangepaste KV
KV: 700KV
Maximaal wattage: 1013W
Maximale stroom: 55,63A
Geen laadstroom: 1,47A/10V
Weerstand: 45.4mΩ
Batterij: 5-6S Lipo
Voorgestelde Prop: 14 inch prop
KV: 800KV
Maximaal wattage: 1210,7 W
Maximale stroom: 58,6A
Geen laadstroom: 1.70A/10V
Weerstand: 30.4mΩ
Batterij: 5-6S Lipo
Voorgestelde Prop: 12 inch prop

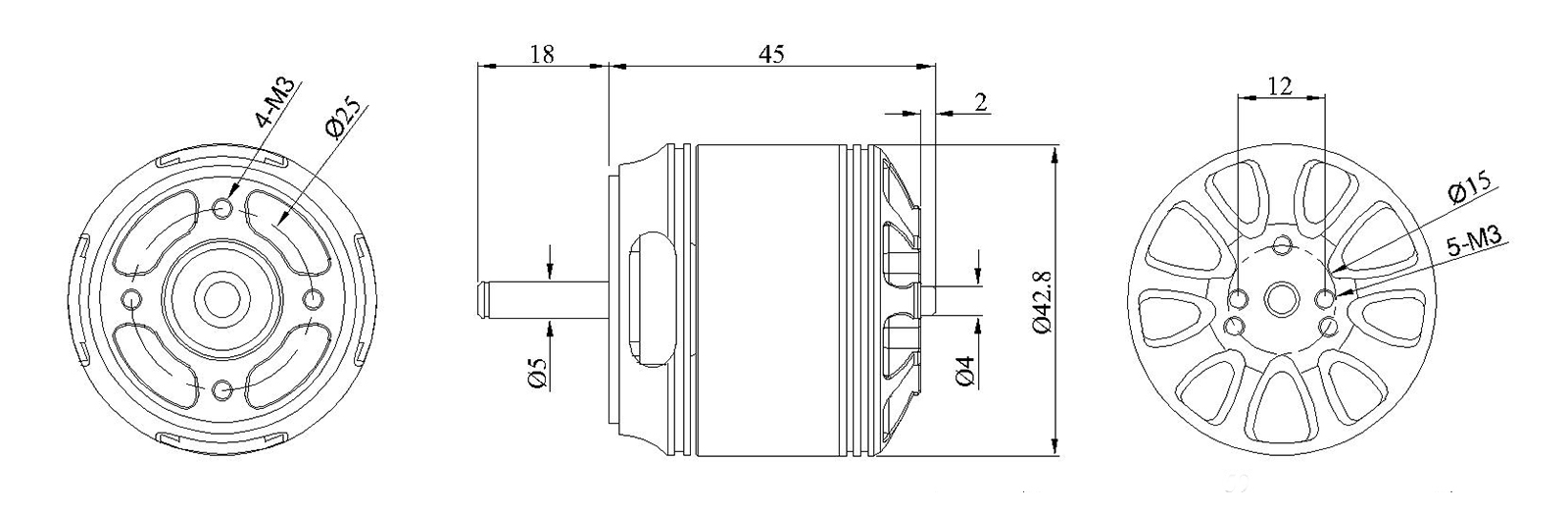

D4245 EVO-motortekening:
D4245 EVOMotortestgegevens:
MOTORTECHNISCHE GEGEVENS: | |||||||||
ltem NR. | Volt (V) | Prop | Gaspedaal (%) | STROOM (A) | Vermogen (W) | Stoot (G) | PRM | Efficiëntie (g/W) | Werkend temperatuur(℃) |
D4245-700KV(EVO) | 18.50 | APC 12x6 | 40% | 6.12 | 113.2 | 835 | 5863 | 7.4 | 48.1℃ |
18.45 | 50% | 8.67 | 160.0 | 1012 | 6549 | 6.3 | |||
18.39 | 60% | 12.36 | 227.3 | 1305 | 7319 | 5.7 | |||
18.28 | 70% | 17.59 | 321.5 | 1661 | 8139 | 5.2 | |||
18.17 | 80% | 24.12 | 438.3 | 2012 | 8884 | 4.6 | |||
18.09 | 90% | 33.00 | 597.0 | 2425 | 9687 | 4.1 | |||
17.88 | 100% | 36.43 | 651.4 | 2557 | 9943 | 3.9 | |||
18.86 | APC 13x6.5 | 40% | 6.76 | 127.5 | 896 | 4922 | 7.0 | 52.2℃ | |
18.82 | 50% | 11.53 | 217.0 | 1286 | 5833 | 5.9 | |||
18.60 | 60% | 18.03 | 335.4 | 1666 | 6659 | 5.0 | |||
18.40 | 70% | 26.60 | 489.4 | 2068 | 7367 | 4.2 | |||
18.14 | 80% | 37.18 | 674.4 | 2506 | 7985 | 3.7 | |||
18.02 | 90% | 49.48 | 891.6 | 2883 | 8572 | 3.2 | |||
17.97 | 100% | 54.48 | 979.0 | 3025 | 8727 | 3.1 | |||
18.86 | APC 14x7 | 40% | 6.76 | 127.5 | 898 | 4902 | 7.0 | 58.4℃ | |
18.75 | 50% | 11.22 | 210.4 | 1306 | 5794 | 6.2 | |||
18.66 | 60% | 18.21 | 339.8 | 1842 | 6743 | 5.4 | |||
18.55 | 70% | 26.83 | 497.7 | 2341 | 7511 | 4.7 | |||
18.47 | 80% | 36.72 | 678.2 | 2820 | 8154 | 4.2 | |||
18.31 | 90% | 49.33 | 903.2 | 3324 | 8736 | 3.7 | |||
18.21 | 100% | 55.63 | 1013.0 | 3517 | 8946 | 3.5 | |||
22.11 | APC 12x6 | 40% | 7.51 | 166.0 | 1011 | 6575 | 6.1 | 60.3℃ | |
22.01 | 50% | 11.23 | 247.2 | 1350 | 7437 | 5.5 | |||
21.88 | 60% | 16.93 | 370.4 | 1780 | 8390 | 4.8 | |||
21.76 | 70% | 23.89 | 519.8 | 2192 | 9286 | 4.2 | |||
21.65 | 80% | 33.22 | 719.2 | 2657 | 10121 | 3.7 | |||
21.49 | 90% | 45.21 | 971.6 | 3077 | 10930 | 3.2 | |||
21.31 | 100% | 49.92 | 1063.8 | 3177 | 11184 | 3.0 | |||
D4245-800KV(EVO) | 18.78 | APC 12x6 | 40% | 11.88 | 223.1 | 1171 | 7086 | 5.2 | 52.6℃ |
18.46 | 50% | 16.57 | 305.9 | 1474 | 7823 | 4.8 | |||
18.19 | 60% | 22.20 | 403.8 | 1754 | 8535 | 4.3 | |||
18.06 | 70% | 30.02 | 542.2 | 2182 | 9320 | 4.0 | |||
17.84 | 80% | 41.86 | 746.8 | 2590 | 10192 | 3.5 | |||
17.66 | 90% | 56.94 | 1005.6 | 3104 | 11017 | 3.1 | |||
17.53 | 100% | 59.60 | 1044.8 | 3180 | 11848 | 3.0 | |||
18.83 | APC 13x6.5 | 40% | 13.89 | 261.5 | 1201 | 5855 | 4.6 | 56.47 | |
18.46 | 50% | 20.67 | 381.6 | 1652 | 6546 | 4.3 | |||
18.26 | 60% | 32.59 | 595.1 | 2214 | 7099 | 3.7 | |||
17.99 | 70% | 46.29 | 832.8 | 2803 | 7672 | 3.4 | |||
17.67 | 80% | 50.36 | 880.0 | 2960 | 8488 | 3.4 | |||
17.25 | 90% | 56.02 | 940.6 | 3120 | 9287 | 3.3 | |||
17.10 | 100% | 58.96 | 1008.2 | 3250 | 9646 | 3.2 | |||
22.25 | APC 12x6 | 40% | 15.31 | 340.6 | 1587 | 8014 | 4.7 | 61.1℃ | |
22.18 | 50% | 22.10 | 490.2 | 2017 | 8925 | 4.1 | |||
22.15 | 60% | 31.32 | 693.7 | 2480 | 9848 | 3.6 | |||
21.96 | 70% | 41.63 | 914.2 | 2968 | 10806 | 3.2 | |||
20.90 | 80% | 53.00 | 1107.7 | 3478 | 11436 | 3.1 | |||
20.70 | 90% | 56.88 | 1177.4 | 3529 | 11287 | 3.0 | |||
20.66 | 100% | 58.60 | 1210.7 | 3635 | 11235 | 3.0 | |||
Opmerkingen: De testconditie van de temperatuur is de oppervlaktetemperatuur van de motor bij 100% gas terwijl de motor 15 s draait. Omgevingstemperatuur 26â | |||||||||
SOLLICITATIE:
VERBINDING:
