Factory Direct Supply Quality 2826 EVO Fixed Wing Motor gemaakt in China. Flash Hobby is 2826 EVO Fixed Wing Motor fabrikant en leverancier in China.

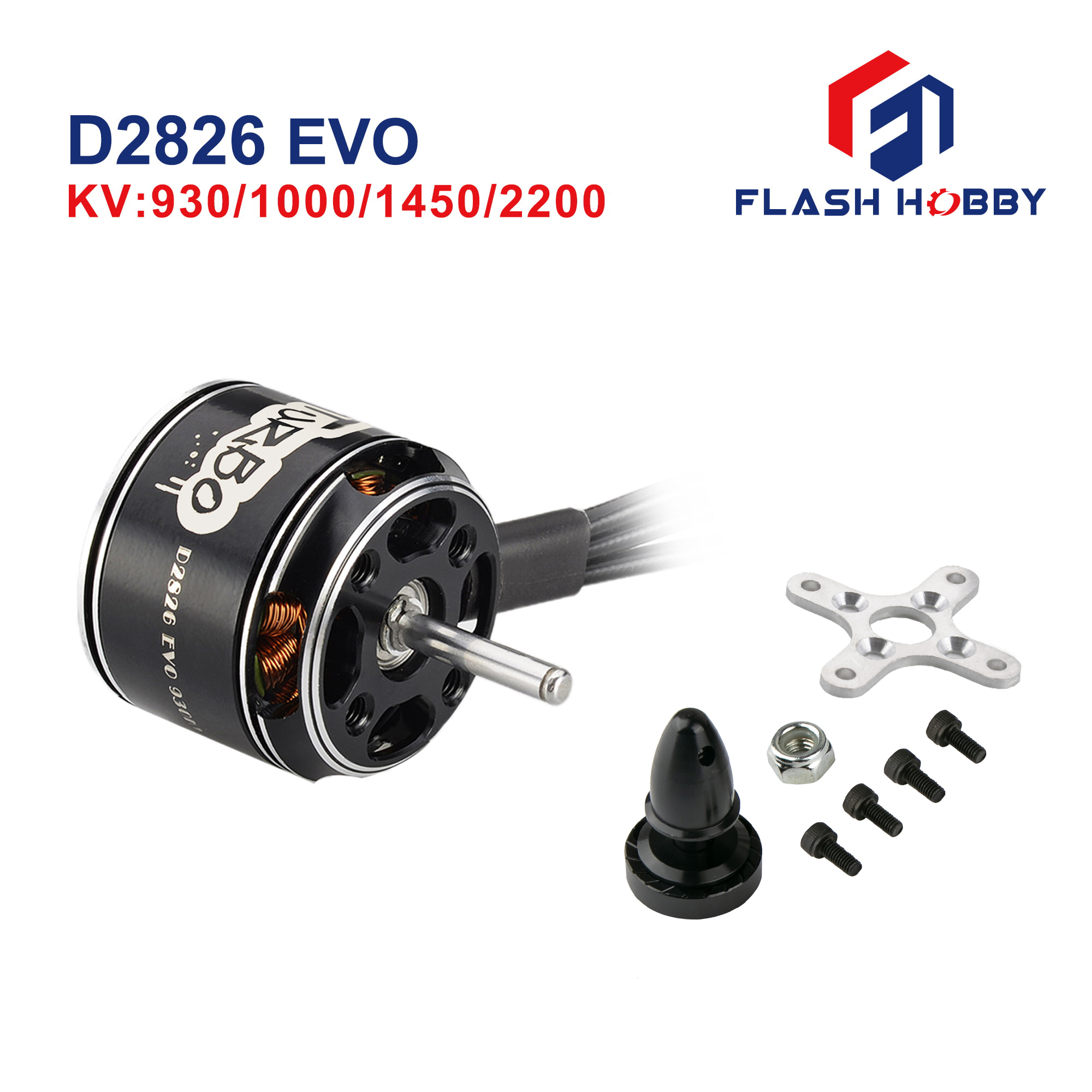

D 2826 EVOToepassing RC borstelloze motor
D 2826 EVO RC borstelloze motor voor UAV-vliegtuigenï¼ Multicoptersï¼ RC vliegtuigï¼ helikopterï¼ Cradle Coffee Machineï¼ Milk Tea Machineï¼ elektrische boormachineï¼ maaimachineï¼ robotarm en etc.
Hittebestendige koperdraadwikkeling
D 2826 EVOSpecificatie RC borstelloze motor

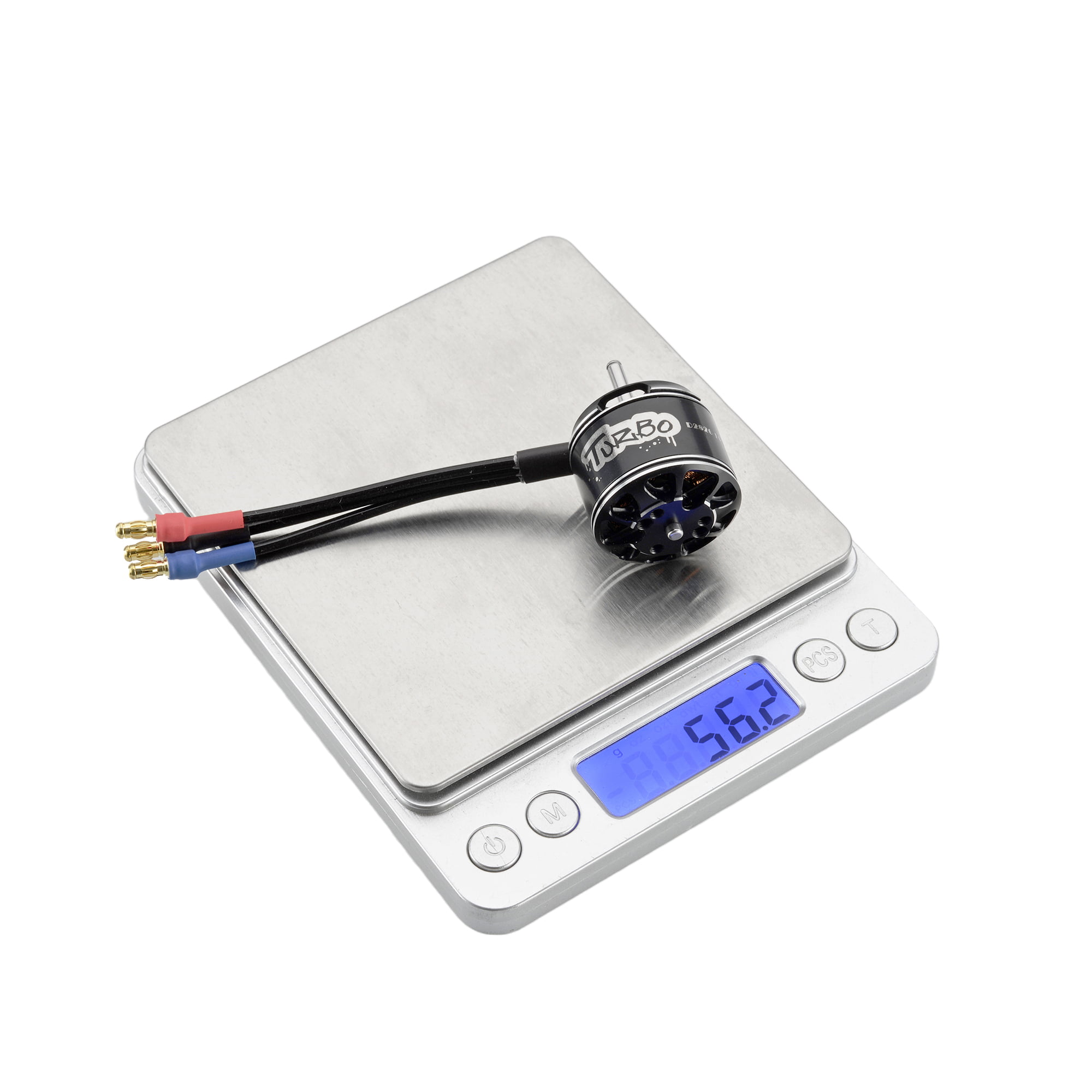

Gewicht: 55,7 g (inclusief kabels)
Motorgrootte: 28 x 26 mm
Schachtmaat: 3,0 * 41,0 mm
Statordiameter: 22 mm
Statorhoogte: 8 mm
Motorbevestiging: 16 * 19 mm (M3 * 4)
Configuratie: 12N14P
KV-waarde voor selectie:
KV-waarde: 930KV, 1000KV, 1450KV, 2200KV of aangepaste KV
KV: 930KV
Maximaal wattage: 162,9 W
Maximale stroom: 13,2A
Geen laadstroom: 0,63A
Weerstand: 156.3mΩ
Batterij: 3-4S Lipo
Voorgestelde Prop: 9 inch prop
KV: 1100KV
Maximaal wattage: 292W
Maximale Stroom: 18.43A
Geen laadstroom: 0,7A
Weerstand: 137.9mΩ
Batterij: 3-4S Lipo
Voorgestelde Prop: 9 inch prop
KV: 1450KV
Maximaal wattage: 367W
Maximale stroom: 30,97A
Geen laadstroom: 1.26A
Weerstand: 30.5mΩ
Batterij: 3-4S Lipo
Voorgestelde Prop: 9 inch prop
KV: 2200KV
Maximaal wattage: 311,5 W
Maximale stroom: 26.1A
Geen laadstroom: 1.26A
Weerstand: 30.5mΩ
Batterij: 3-4S Lipo
Voorgestelde Prop: 9 inch prop
D2826 EVO-motortekening:
D2826 EVO-motortestgegevens:
MOTORTECHNISCHE GEGEVENS: | |||||||||
ltem NR. | Volt (V) | Prop | Gaspedaal (%) | STROOM (A) | Vermogen (W) | Stoot (G) | PRM | Efficiëntie (g/W) | Werkend temperatuur(℃) |
D2826-930KV(EVO) | 12.56 | APC 9x6 | 40% | 2.66 | 33.4 | 266 | 4413 | 8.0 | 36.7℃ |
12.54 | 50% | 3.66 | 45.9 | 344 | 4972 | 7.5 | |||
12.52 | 60% | 4.78 | 59.8 | 421 | 5483 | 7.0 | |||
12.48 | 70% | 6.70 | 83.6 | 522 | 6153 | 6.2 | |||
12.42 | 80% | 9.02 | 112.0 | 655 | 6808 | 5.9 | |||
12.37 | 90% | 11.79 | 145.8 | 781 | 7409 | 5.4 | |||
12.34 | 100% | 13.20 | 162.9 | 840 | 7647 | 5.2 | |||
12.48 | APC 9x6 | 40% | 2.53 | 31.6 | 225 | 4806 | 7.1 | 36.3℃ | |
12.46 | 50% | 3.40 | 42.4 | 288 | 5418 | 6.8 | |||
12.44 | 60% | 4.29 | 53.4 | 360 | 5910 | 6.7 | |||
12.41 | 70% | 5.55 | 68.9 | 378 | 6509 | 5.5 | |||
12.37 | 80% | 7.41 | 91.7 | 529 | 7181 | 5.8 | |||
12.33 | 90% | 9.71 | 119.7 | 650 | 7881 | 5.4 | |||
12.31 | 100% | 10.89 | 134.1 | 688 | 8189 | 5.1 | |||
D2826-1000KV (EVO) | 12.62 | APC 9x6 | 40% | 2.99 | 37.7 | 280 | 5084 | 7.4 | 36.2℃ |
12.55 | 50% | 3.97 | 49.8 | 314 | 5726 | 6.3 | |||
12.47 | 60% | 5.03 | 62.7 | 380 | 6250 | 6.1 | |||
12.27 | 70% | 6.55 | 80.4 | 432 | 6824 | 5.4 | |||
12.14 | 80% | 8.56 | 103.9 | 511 | 7476 | 4.9 | |||
12.06 | 90% | 11.15 | 134.5 | 609 | 8175 | 4.5 | |||
12.00 | 100% | 12.50 | 150.0 | 648 | 8416 | 4.3 | |||
16.63 | APC 8x6 | 40% | 3.87 | 64.4 | 335 | 7104 | 5.2 | 37.5℃ | |
16.55 | 50% | 5.22 | 86.4 | 413 | 7858 | 4.8 | |||
16.45 | 60% | 6.52 | 107.3 | 489 | 8523 | 4.6 | |||
16.33 | 70% | 8.07 | 131.8 | 566 | 9113 | 4.3 | |||
16.10 | 80% | 10.50 | 169.1 | 674 | 9922 | 4.0 | |||
16.01 | 90% | 13.95 | 223.3 | 805 | 10742 | 3.6 | |||
15.94 | 100% | 15.67 | 249.8 | 847 | 11100 | 3.4 | |||
16.56 | APC 9x6 | 40% | 4.16 | 68.9 | 397 | 6283 | 5.8 | 38.8℃ | |
16.46 | 50% | 5.70 | 93.8 | 493 | 6992 | 5.3 | |||
16.31 | 60% | 7.44 | 121.3 | 605 | 7639 | 5.0 | |||
16.21 | 70% | 9.94 | 161.1 | 758 | 8398 | 4.7 | |||
16.00 | 80% | 12.90 | 206.4 | 917 | 9156 | 4.4 | |||
15.88 | 90% | 16.62 | 263.9 | 1050 | 9886 | 4.0 | |||
15.85 | 100% | 18.43 | 292.1 | 1111 | 10141 | 3.8 | |||
D2826-1450KV(EVO) | 12.49 | 7x5 | 40% | 6.44 | 80.4 | 340 | 7639 | 4.2 | 38.5℃ |
12.46 | 50% | 8.68 | 108.2 | 423 | 8486 | 3.9 | |||
12.41 | 60% | 11.01 | 136.6 | 500 | 9187 | 3.7 | |||
12.35 | 70% | 13.59 | 167.8 | 584 | 9883 | 3.5 | |||
12.25 | 80% | 17.86 | 218.8 | 711 | 10820 | 3.2 | |||
12.13 | 90% | 23.15 | 280.8 | 835 | 11707 | 3.0 | |||
12.07 | 100% | 25.83 | 311.8 | 887 | 12081 | 2.8 | |||
12.49 | APC 8x6 | 40% | 6.45 | 80.6 | 393 | 7565 | 4.9 | 39.2℃ | |
12.44 | 50% | 8.77 | 109.1 | 480 | 8388 | 4.4 | |||
12.39 | 60% | 11.19 | 138.6 | 565 | 9024 | 4.1 | |||
12.34 | 70% | 13.85 | 170.9 | 649 | 9708 | 3.8 | |||
12.22 | 80% | 18.49 | 225.9 | 778 | 10583 | 3.4 | |||
12.09 | 90% | 24.27 | 293.4 | 909 | 11409 | 3.1 | |||
12.00 | 100% | 27.09 | 325.1 | 956 | 11673 | 2.9 | |||
12.46 | APC 9x6 | 40% | 7.04 | 87.7 | 416 | 6668 | 4.7 | 40.1℃ | |
12.40 | 50% | 9.78 | 121.3 | 592 | 7455 | 4.9 | |||
12.33 | 60% | 13.05 | 160.9 | 708 | 8202 | 4.4 | |||
12.24 | 70% | 16.67 | 204.0 | 855 | 8912 | 4.2 | |||
12.11 | 80% | 21.72 | 263.0 | 1017 | 9704 | 3.9 | |||
11.92 | 90% | 28.11 | 335.1 | 1194 | 10381 | 3.6 | |||
11.85 | 100% | 30.97 | 367.0 | 1256 | 10645 | 3.4 | |||
D2826-2200KV(EVO) | 12.41 | APC9x6 | 40% | 8.53 | 105.9 | 328 | 17323 | 3.1 | 39.6℃ |
12.37 | 50% | 10.54 | 130.4 | 387 | 18730 | 3.0 | |||
12.33 | 60% | 12.34 | 152.2 | 442 | 19866 | 2.9 | |||
12.29 | 70% | 13.86 | 170.3 | 500 | 20750 | 2.9 | |||
12.26 | 80% | 15.20 | 186.4 | 538 | 21420 | 2.9 | |||
12.19 | 90% | 17.35 | 211.5 | 583 | 22561 | 2.8 | |||
12.14 | 100% | 19.42 | 235.8 | 653 | 23470 | 2.8 | |||
12.34 | EP6050 | 40% | 10.35 | 127.7 | 448 | 14953 | 3.5 | 40.9℃ | |
12.28 | 50% | 13.11 | 161.0 | 547 | 16434 | 3.4 | |||
12.22 | 60% | 15.48 | 189.2 | 626 | 17576 | 3.3 | |||
12.17 | 70% | 17.58 | 213.9 | 698 | 18557 | 3.3 | |||
12.11 | 80% | 19.64 | 237.8 | 772 | 19451 | 3.2 | |||
11.99 | 90% | 23.63 | 283.3 | 896 | 20856 | 3.2 | |||
11.92 | 100% | 26.13 | 311.5 | 963 | 21658 | 3.1 | |||
Opmerkingen: De testconditie van de temperatuur is de oppervlaktetemperatuur van de motor bij 100% gas terwijl de motor 15 s draait. Omgevingstemperatuur 26â | |||||||||
Opmerking: we wijzigen de propadapter van de EVO-serie zoals onderstaande afbeelding vanaf 29-04-2022.
VERBINDING:
